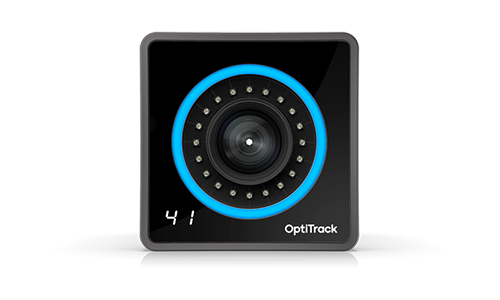

What is PrimeX 41?
It is an optical-based motion capture camera with a resolution of 4.1 MP and sensitivity up to 0.10 mm, and it can record 180 frames per second on average. With passive markers, the field of view is up to 30 meters, and with active markers, it is up to 45 meters.
What does PrimeX 41 do?
Entertainment
For professional studios, it provides high-precision recording. It can record one or more people’s movements simultaneously. Only this OptiTrack camera allows recording right out of the box, even in the open air.
Health & Sport
It combines measurement accuracy with simple flow, giving researchers and biomechanists the perfect 3D data for their research.
How does PrimeX 41 work?
OptiTrack cameras work with OptiTrack’s Motive software to provide the most sensitive data in the industry.
PrimeX 41 can be used immediately both indoors and outdoors.
Technicial Specifications
Vision Sensor
2048×2048 resolution
180Hz frame rate
5.5ms delay
Range
+/- 0.10mm 3D accuracy
30 meters passive marker range
50 meters active marker range
Connection
PoE or PoE+
Shutter
0.25ms speed
0.01 ms minimum speed
4.0ms top speed at 250 FPS
Lens and Filter
12mm F#1.8
51° horizontal FOV
51° vertical FOV
Image Processing
Grayscale
Dimensions and Weight
Width
4.96 inches (12.6 cm)
Depth
5.19 inches (13.2 cm)
Height
4.96 inches (12.6 cm)
Weight
3.0 pounds (1.36 kg)
Body
Aluminum and polycarbonate
