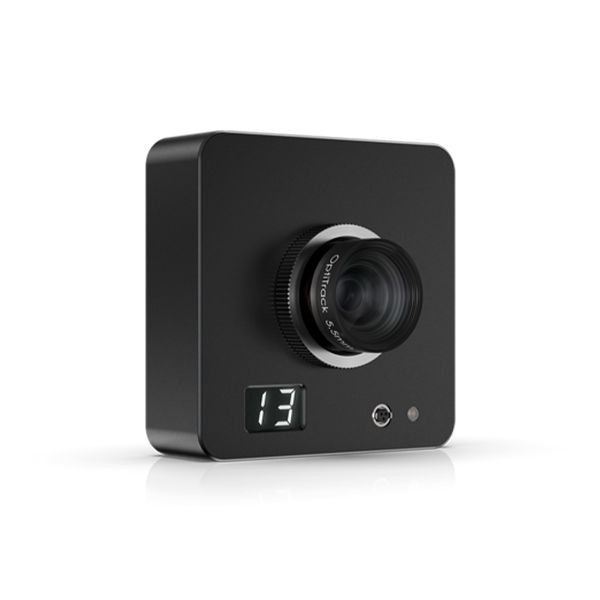

What is SlimX 13?
It is a motion capture camera used in VR, AR and drone tracking applications with active tracking technology.
What does SlimX 13 do?
Through the use of virtual cameras, drones, and subject and object tracking, it incorporates real motion data into virtual reality.
How does SlimX 13 work?
OptiTrack cameras work with OptiTrack’s Motive software to provide the most sensitive data in the industry.
Technicial Specifications
Vision Sensor
1280×1024 resolution
240Hz frame rate
4.2ms delay
Range
+/- 0.30mm 3D accuracy
There is no passive marking.
15 meters active marker range
Connection
PoE
Shutter
0.25ms speed
0.01 ms minimum speed
3.9ms top speed at 240 FPS
Lens and Filter
5.5mm F#1.8
56° horizontal FOV
46° vertical FOV
Image Processing
Grayscale
Dimensions and Weight
Width
2.7 inches (6.86 cm)
Depth
0.9 inch (2.3 cm)
Height
2.7 inches (6.86 cm)
Weight
0.48 pounds (0.21 kg)
Body
Aluminum and polycarbonate
